Description
High-efficiency energy saving escalator for commercial buildings. IE3 motor, VFD control, LED lighting, ISO 25745 A+++ energy rating, heavy-duty & low noise. Ideal for mall, office, hotel, airport.

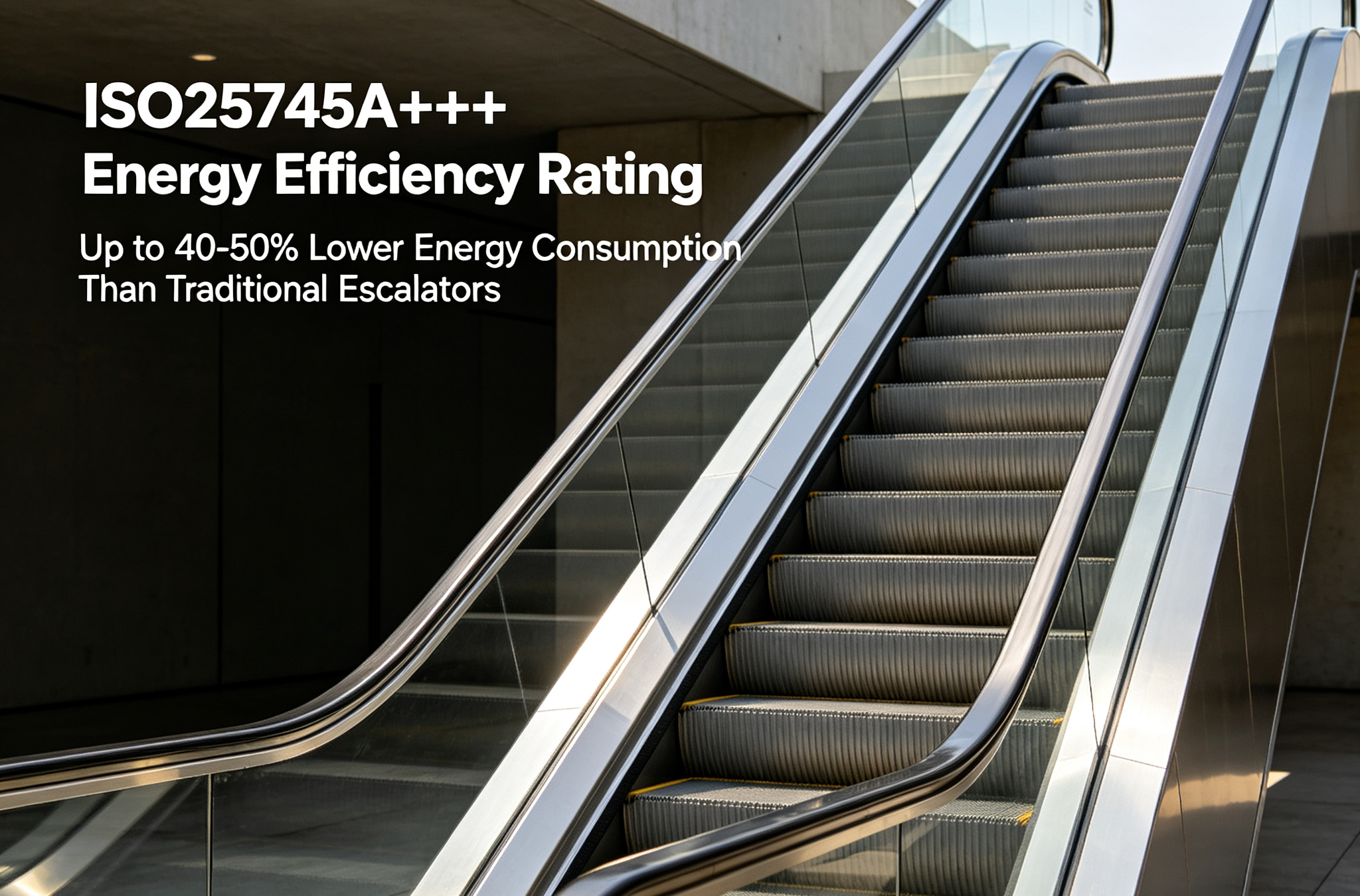

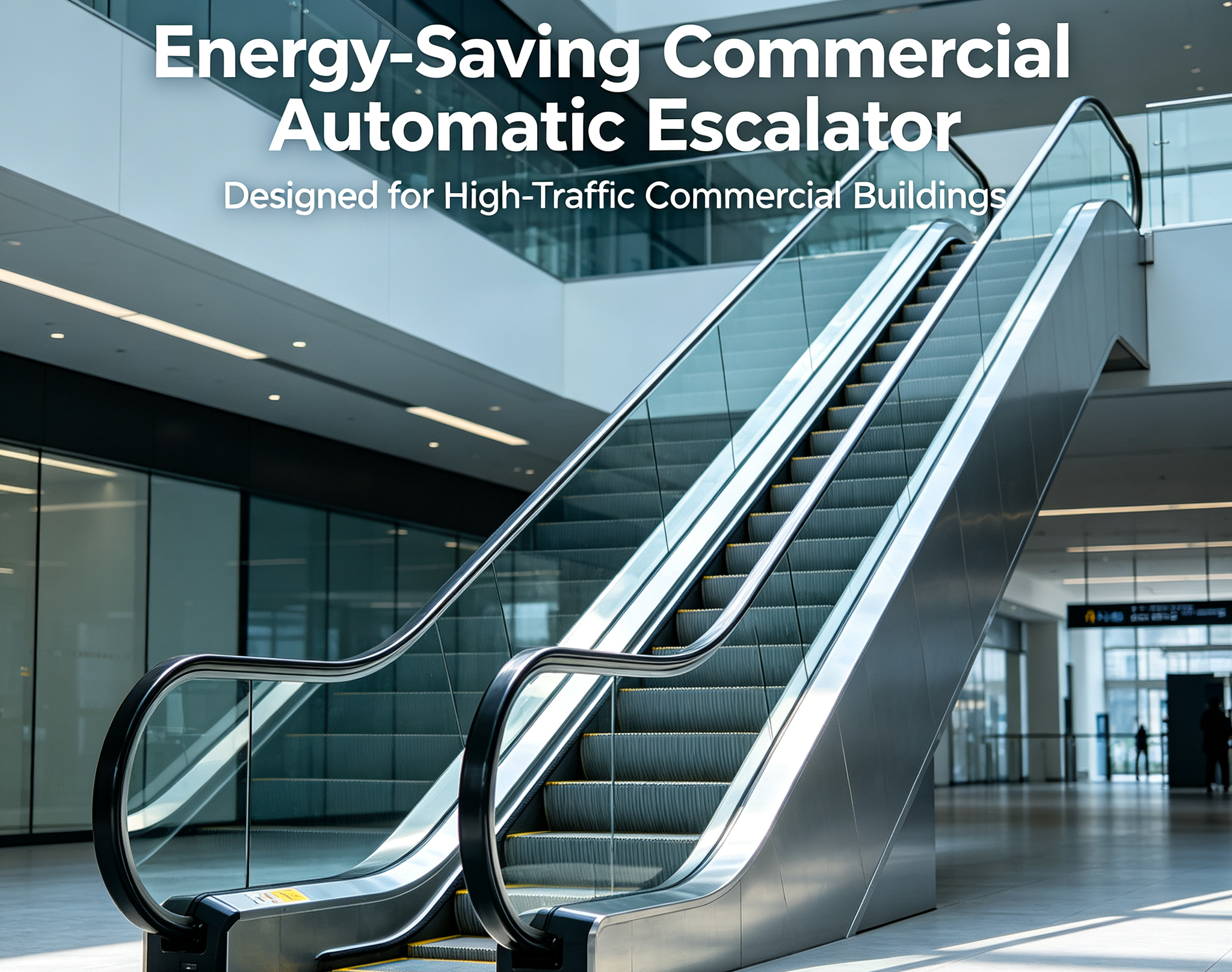

Our energy-saving commercial escalator is engineered for high-traffic commercial buildings—shopping malls, office towers, hotels, airports, and transit stations. Designed with ISO 25745 A+++ top energy efficiency rating, it reduces power consumption by up to 40–50% compared to conventional escalators, cutting operational costs and carbon footprint for your property.

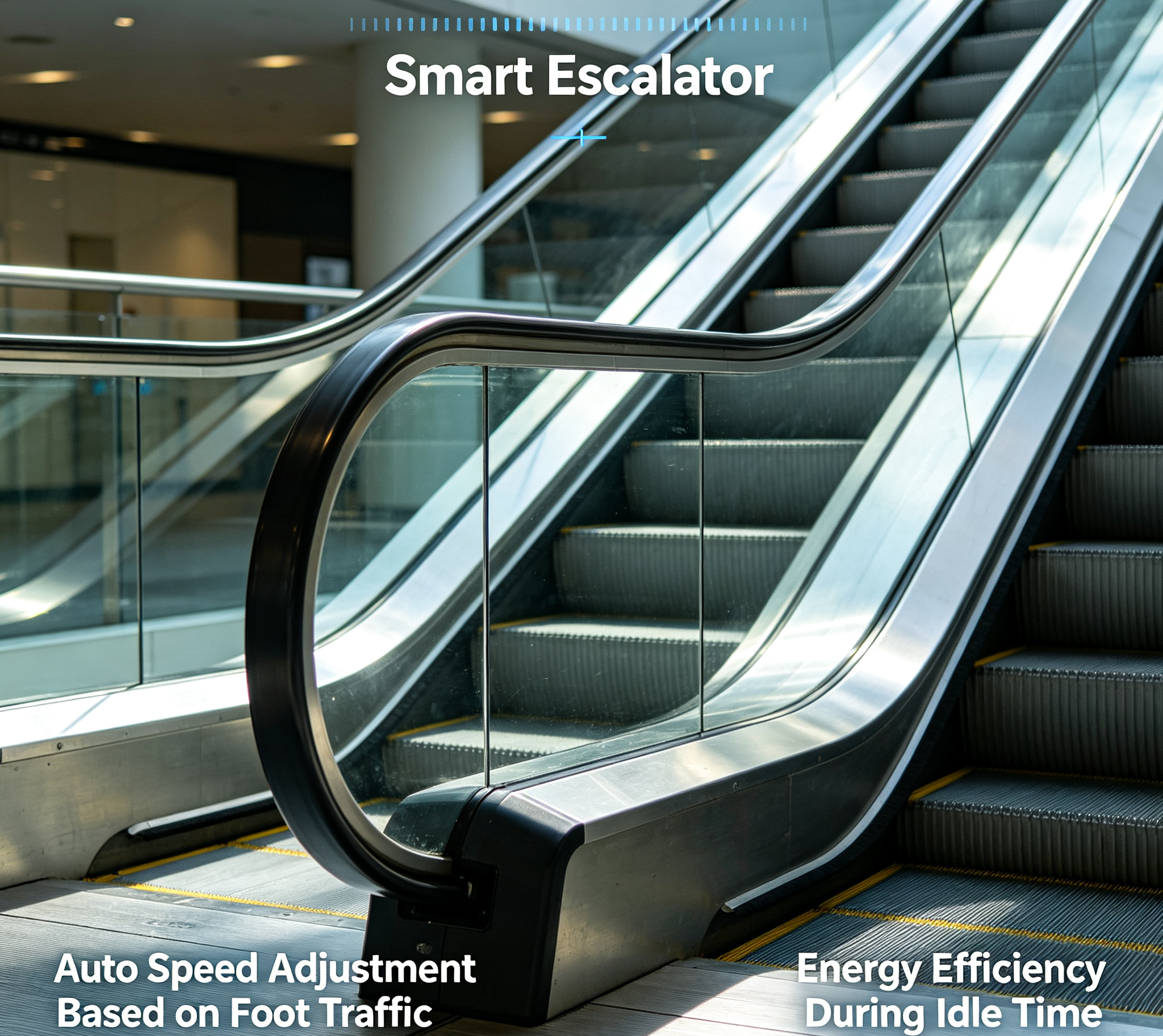

Equipped with IE3 premium efficiency motor and intelligent VFD (Variable Frequency Drive) control, the escalator automatically adjusts speed between 0.5 m/s (full speed) and standby low speed based on passenger flow, avoiding energy waste during idle time (up to 80% of daily operation). The regenerative drive option recycles braking energy back to the building grid for further savings.

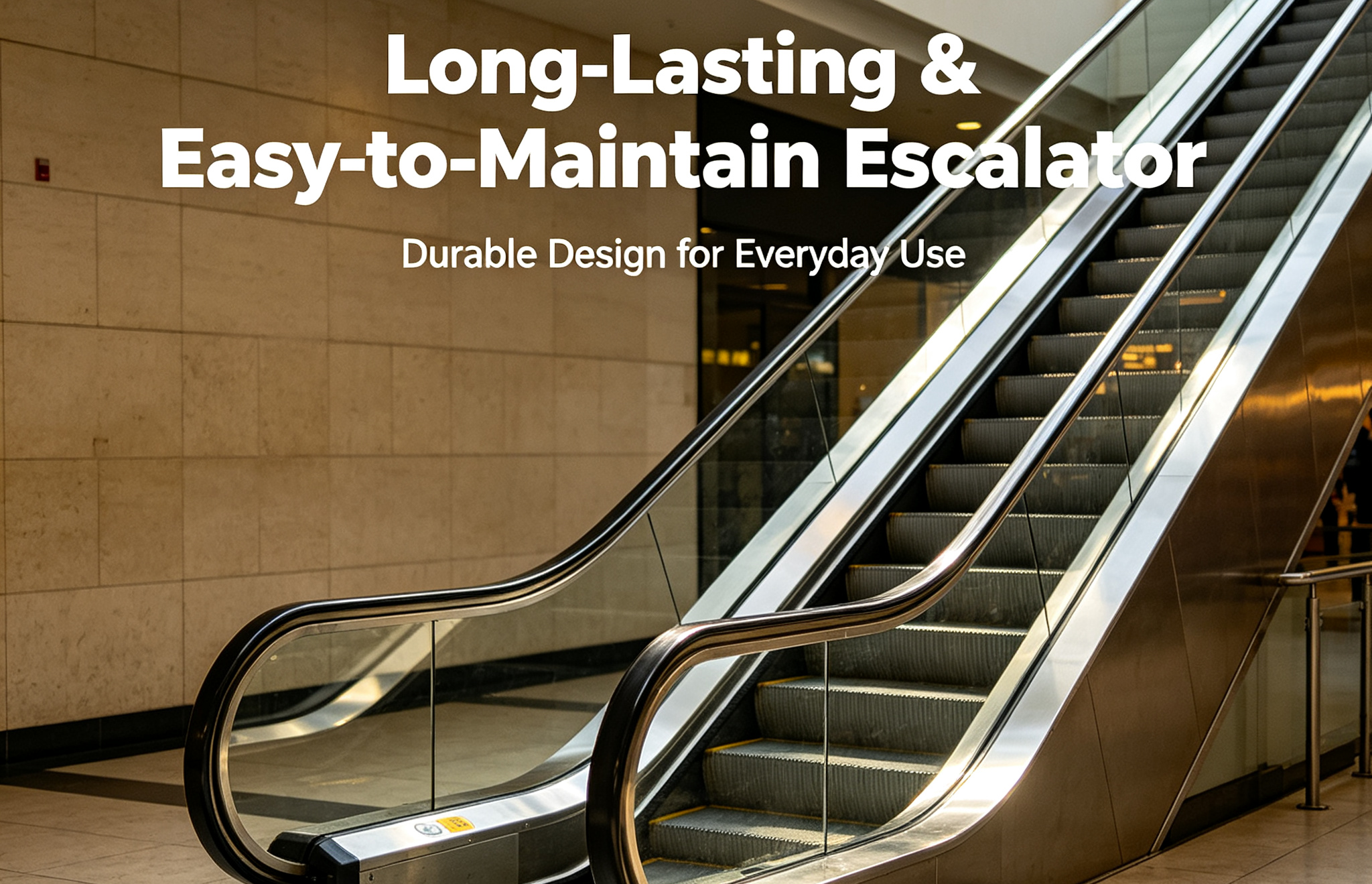

Built for heavy-duty commercial duty (12–16 hours daily), this escalator features 304 stainless steel steps, hairline finish balustrade, and durable handrail for long service life and easy maintenance. Low noise design (<60 dB) ensures a quiet and comfortable passenger experience in shopping centers and office lobbies.

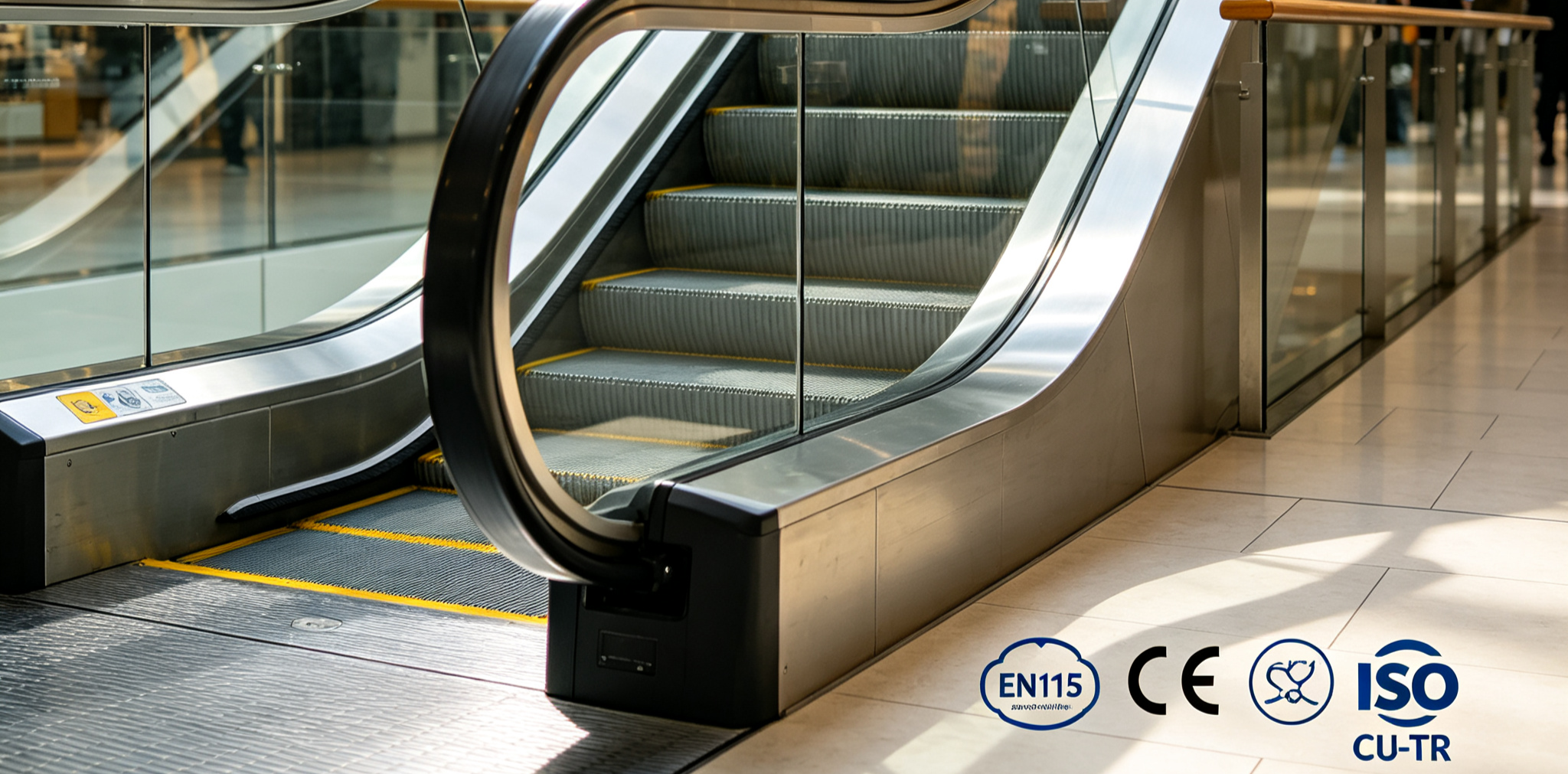

Safety is prioritized with 50+ safety devices including emergency stop, handrail speed monitoring, step missing protection, and anti-slip steps, complying with EN 115, CE, ISO, CU-TR certifications. Long-lasting LED lighting (80% more efficient than fluorescent) illuminates the entire travel path with minimal energy use.

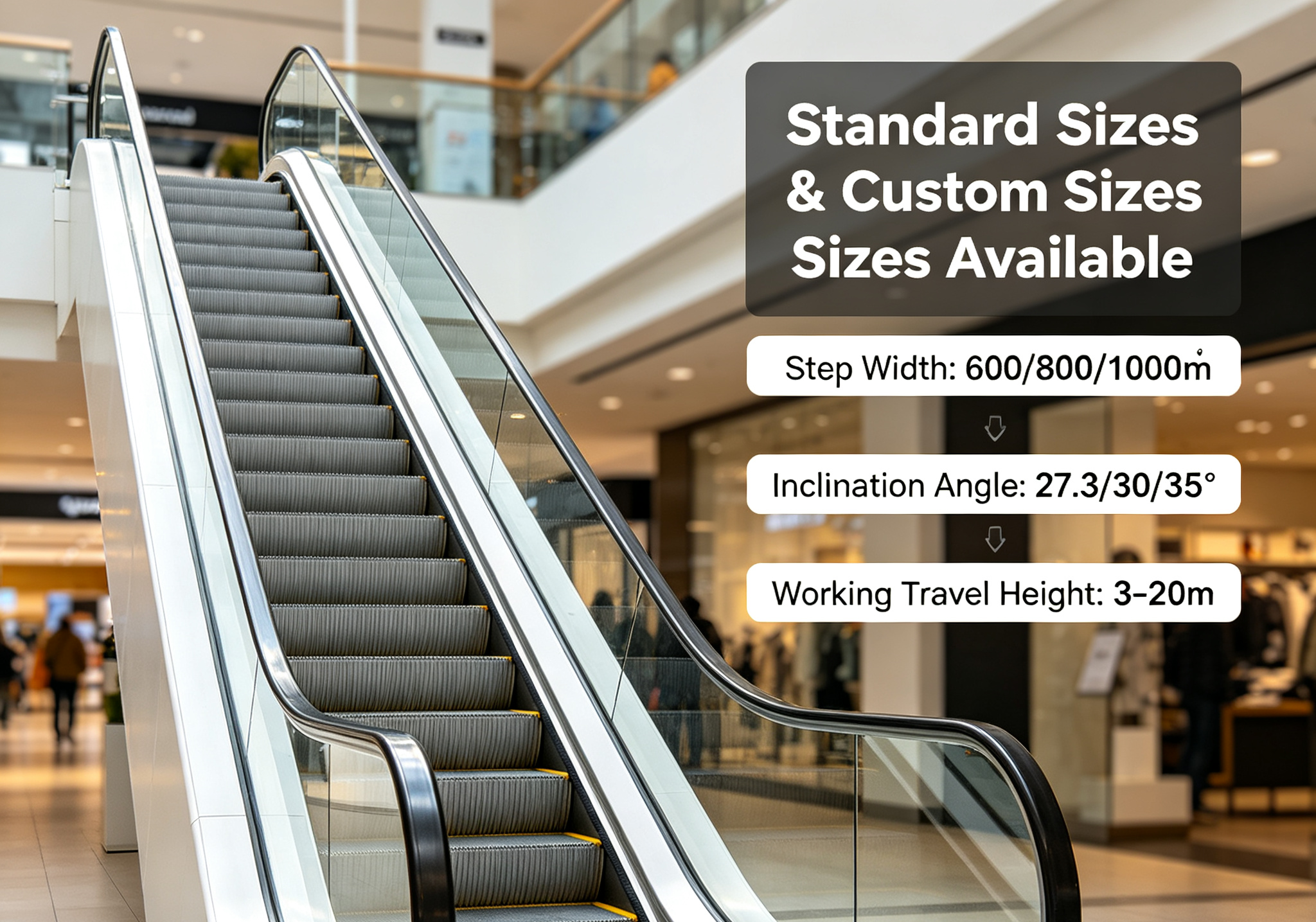

Available in standard and customized sizes: step width 600/800/1000 mm, inclination 27.3°/30°/35°, travel height 3–20 m. Perfect for new construction or renovation projects in commercial real estate.
Parameter
| Parameter | Details |
| Model | Commercial Energy-Saving Escalator |
| Application | Shopping Mall, Office Building, Hotel, Airport, Transit Station |
| Energy Rating | ISO 25745 A+++ (Top Efficiency) |
| Energy Saving Rate | 40–50% vs. conventional escalator |
| Inclination Angle | 27.3° / 30° / 35° |
| Step Width | 600 mm (1-person) / 800 mm (1-person+luggage) / 1000 mm (2-person) |
| Travel Height (Vertical Rise) | 3,000 mm – 20,000 mm |
| Rated Speed | 0.5 m/s (standard), 0.65 m/s (optional) |
| Duty Cycle | Heavy-duty, 12–16 hours/day |
| Motor | IE3 Premium Efficiency AC Motor |
| Control System | VFD (Variable Frequency Drive) Intelligent Control |
| Drive Type | Standard or Regenerative (energy feedback) |
| Lighting | LED (80% energy saving, 10x longer life) |
| Step Material | 304 Stainless Steel, Anti-slip |
| Balustrade | 304 Stainless Steel (Hairline / Mirror / Etching finish) |
| Handrail | Durable Rubber, Speed deviation ≤ ±2% |
| Noise Level | ≤ 60 dB (low noise) |
| Safety Devices | Emergency Stop, Handrail Speed Monitor, Step Missing Protection, Anti-slip Step, Overload Protection, etc. (50+ items) |
| Certifications | CE, EN 115, ISO 9001, CU-TR |
| Environment | Indoor / Semi-outdoor (optional) |
- A+++ Top Energy Efficiency: ISO 25745 A+++ rating, 40–50% energy savings for lower electricity bills.
- Smart VFD Control: Auto speed adjustment based on passenger flow; eliminates idle energy waste.
- Heavy-Duty Commercial Grade: 12–16 hours daily operation; 304 stainless steel for durability.
- Quiet & Comfortable: ≤60 dB low noise design for shopping malls and office lobbies.
- Full Safety Compliance: 50+ safety devices, CE/EN 115/ISO certifications.
- Customizable Sizes: 600/800/1000 mm width, 3–20 m rise; fits any commercial layout.
- Long-Term Cost Savings: Regenerative drive option + LED lighting reduce maintenance and energy costs.
