Description
Our commercial building escalator is engineered for high foot traffic in shopping malls, retail centers, hotels, office buildings, exhibition halls and transportation hubs. Designed with safety, durability and passenger comfort as top priorities, it delivers stable, quiet and efficient vertical transportation while blending seamlessly with modern commercial architecture.

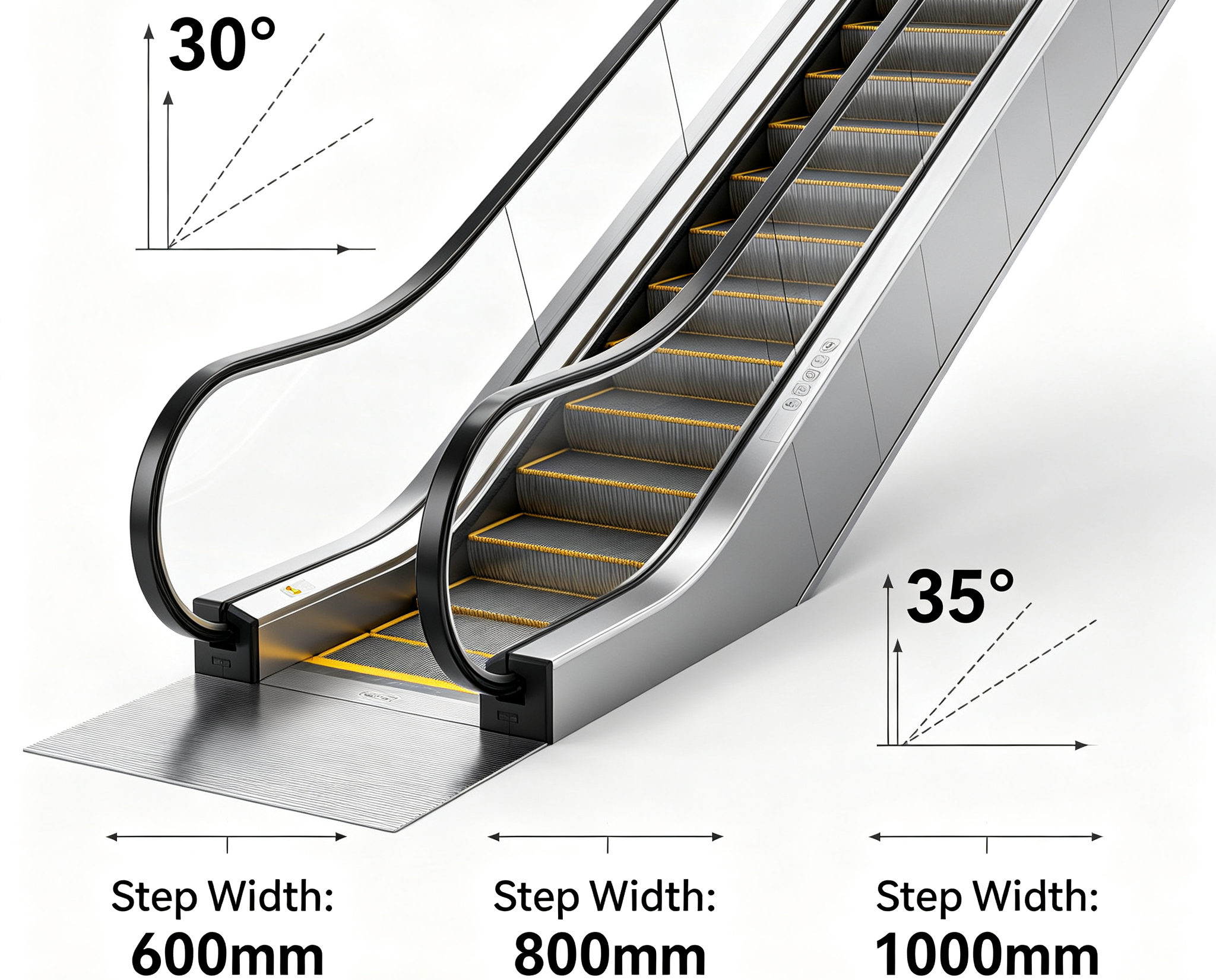

Available in 30° and 35° inclination angles and 600mm (single), 800mm (medium) and 1000mm (double) step widths, the escalator adapts to different space layouts and passenger flow demands. With a standard speed of 0.5m/s and maximum lifting height up to 13m (30°), it ensures smooth and safe operation for daily commercial use.

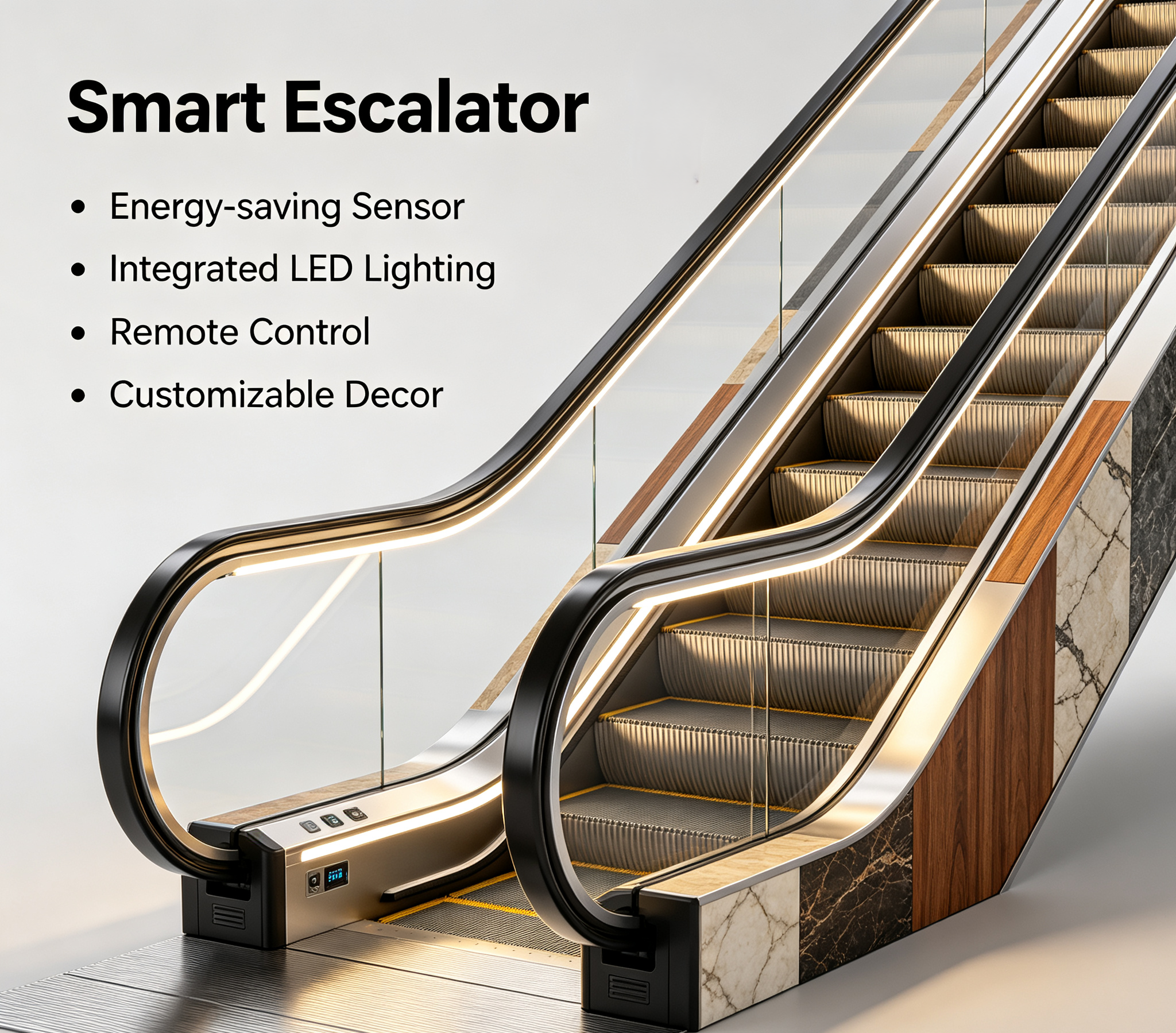

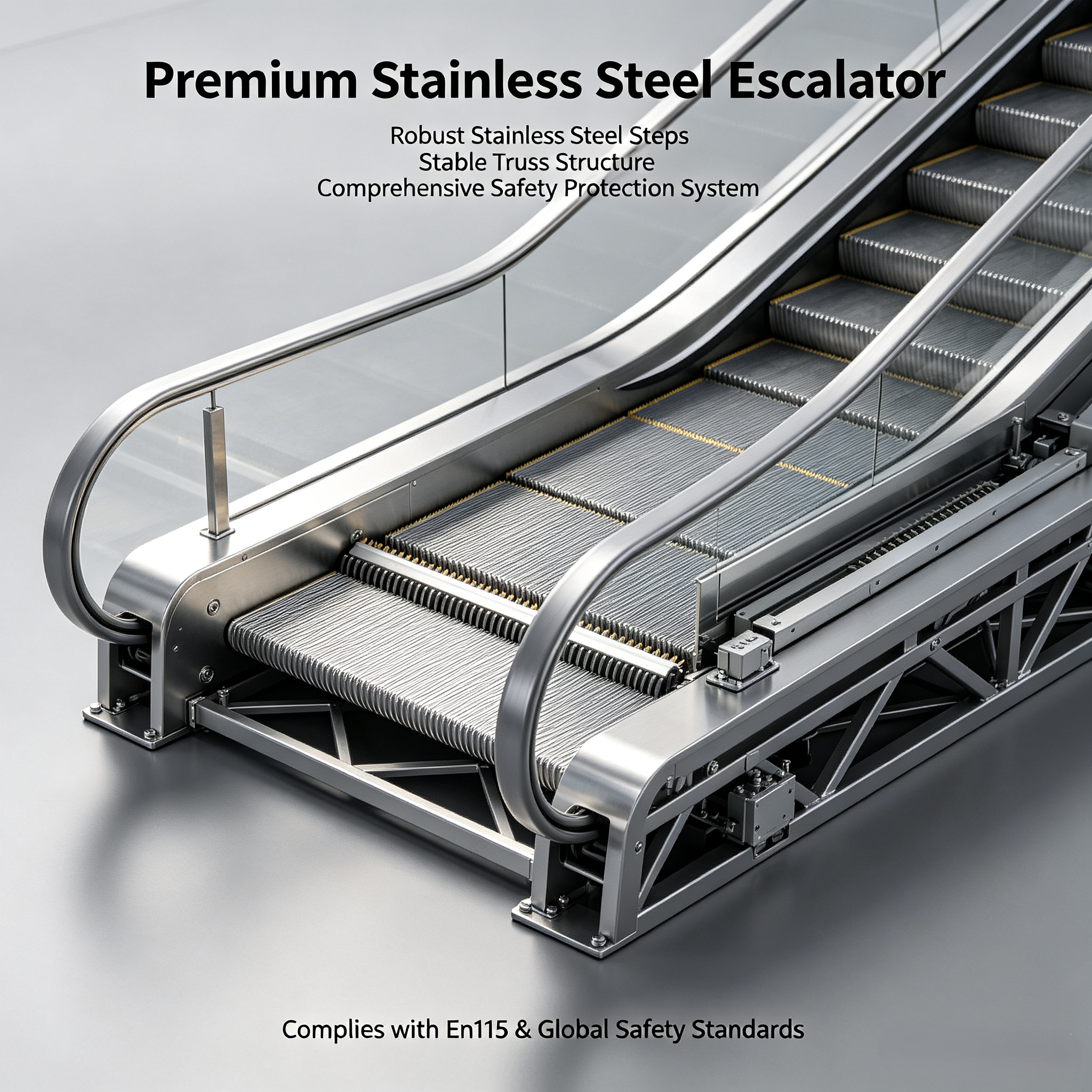

Built with heavy‑duty stainless steel steps, robust truss structure and full safety protection systems, our commercial escalator meets EN 115 and global safety standards. Optional smart features include energy‑saving sensors, LED integrated lighting, remote monitoring and customized finishes to match your building’s interior design.
Ideal for new construction and renovation projects, this commercial escalator reduces congestion, improves customer experience and enhances the overall value of your property.
Parameter
| Parameter | Standard Value |
| Application | Commercial buildings, shopping malls, airports, hotels, offices |
| Inclination Angle | 30° / 35° (optional) |
| Rated Speed | 0.5 m/s (standard); 0.65/0.75 m/s optional |
| Step Width | 600 mm / 800 mm / 1000 mm |
| Vertical Rise | Up to 13 m (1000mm width) |
| Theoretical Capacity | 4500–13500 persons/h |
| Drive System | Heavy-duty chain, lubrication-free option |
| Safety Features | Emergency stop, anti-slip step, comb plate sensor, handrail speed monitor |
| Material | Stainless steel (steps/handrail), tempered glass (balustrade) |
| Certification | CE, ISO 9001, ISO 14001 |
| Control | PLC + VVVF inverter, energy-saving mode |
| Noise Level | ≤ 60 dB (low noise design) |
| Power Supply | 380V/50Hz or 440V/60Hz |
| Color & Design | Customizable (RAL colors, LED lighting) |
- Commercial‑Grade Durability – Built for 24/7 high‑traffic operation in busy retail and public spaces.
- Space‑Saving & Flexible Layout – 30°/35° angles and multiple widths optimize floor space in commercial buildings.
- Enhanced Safety for Public Use – Comprehensive safety package protects passengers in crowded environments.
- Energy Efficiency for OPEX Reduction – Smart sensors reduce power consumption during low‑traffic periods.
- Architectural Integration – Custom finishes and lighting complement modern commercial interior design.
- Low Maintenance & High Reliability – Heavy‑duty components minimize downtime in critical commercial operations.
